Grade 14 Radius Concealed Bearing Hinge





Click Here To Download Data Sheet

Available in 3 Finishes – Satin Stainless, Polished Stainless & Matt Black.



Grade 14 (160 Kg Total Door Mass)



CE 1121, UKCA 2812, Certifire CF336



BS EN1634 Fire Tested FD30, 60, 90, 120 Minute Timber Door. FD240 Minute Steel Door



Size – 102x76x3mm





£0.00

Clear

Description

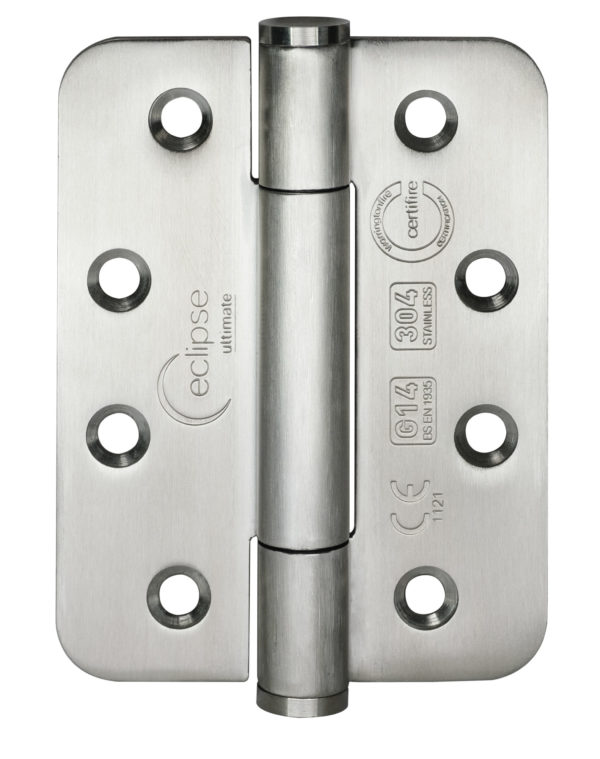

Eclipse Stainless Steel Radius Concealed Bearing Hinge

Manufactured With 10mm Radius Corners

Grade 14 (160 Kg Total Door Mass)

SUS 304 Material Stainless Steel

CE 1121, UKCA 2812, Certifire CF336

BS EN1935 Performance Tested 200,000 Cycles To Grade 14

BS EN1634 Fire Tested FD30, 60, 90, 120 Minute Timber Door. FD240 Minute Steel Door

102x76x3mm

10 Guage Countersunk

Supplied With 10×1.1/4″ Fully Threaded Screws

Supplied As A Pack Of 2

Specification

Finish

Matt Black, Polished Stainless Steel, Satin Stainless Steel

Pack Quantity

2 pack

Grade

Grade 14 (160 kg)

Size

102x76x3mm

Base Material

SUS 304 stainless steel
