102x67mm Grade 7 Stainless Steel Washered Hinge
Click Here To Download Data Sheet
Click Here For Technical Drawing
Grade 7 (40 Kg Total Door Mass)
CE 2812, UKCA 1121, Certifire CF336
102x67x2.5mm
Supplied as a Pack of 2 Pieces
£0.00
Description

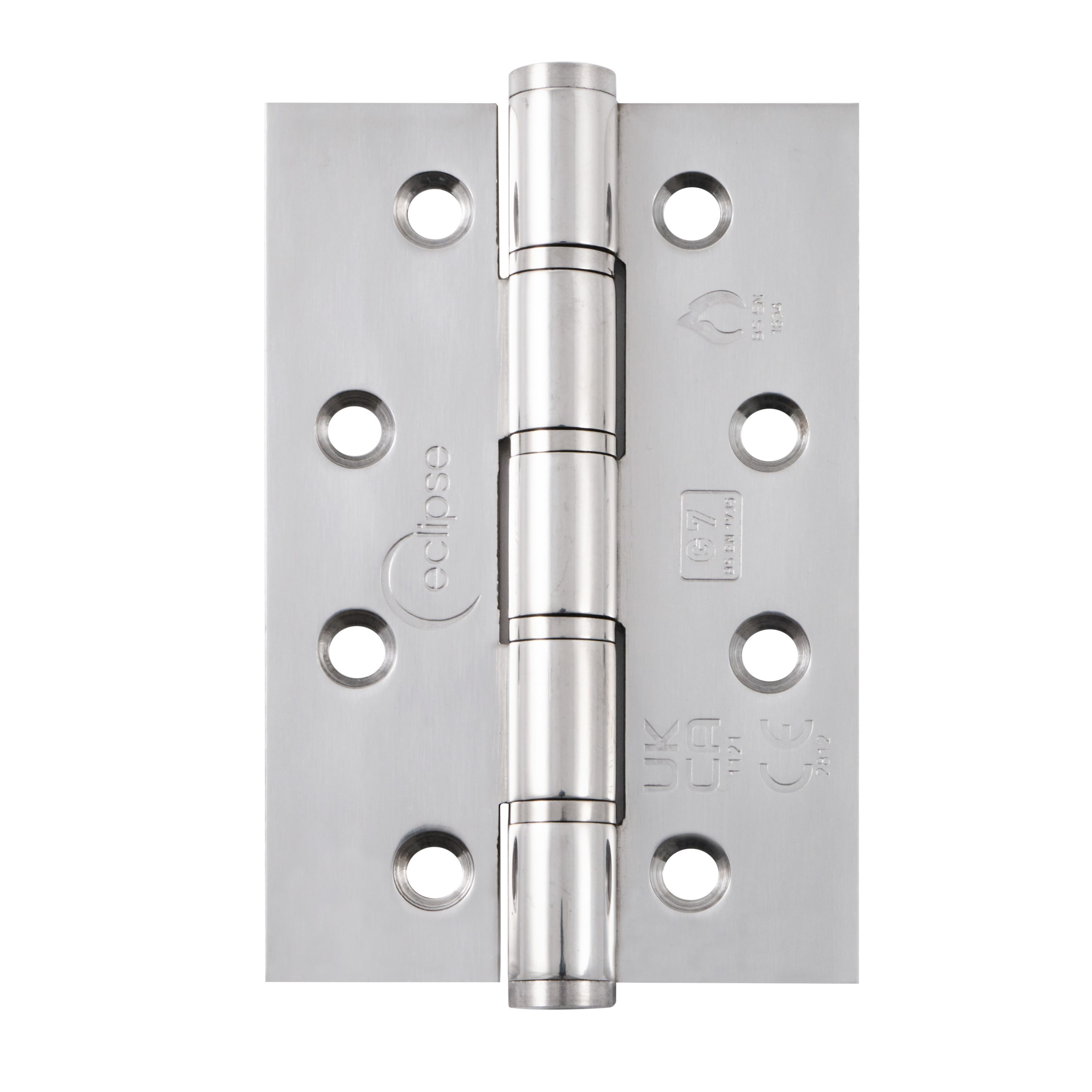

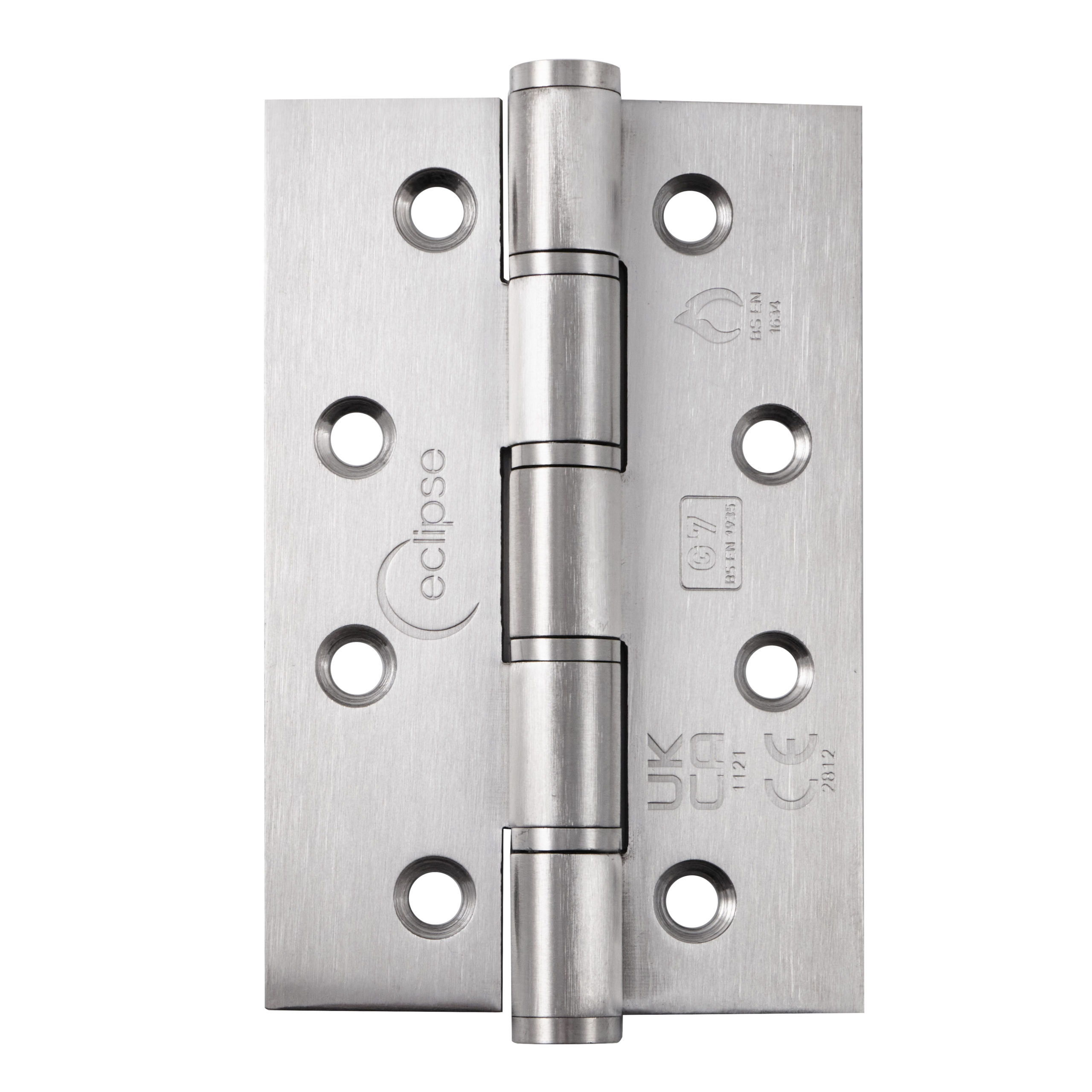

Eclipse Stainless Steel Washered Hinge
Slim Knuckle Design
Grade 7 (40 Kg Total Door Mass)
SUS 201 Material Stainless Steel
CE 2812, UKCA 1121, Certifire CF336
BS EN1935 Performance Tested 200,000 Cycles To Grade 7
BS EN1634 Fire Tested FD30, 60 Minute Timber Door. FD240 Minute Steel Door
102x67x2.5mm
8 Gauge Countersunk

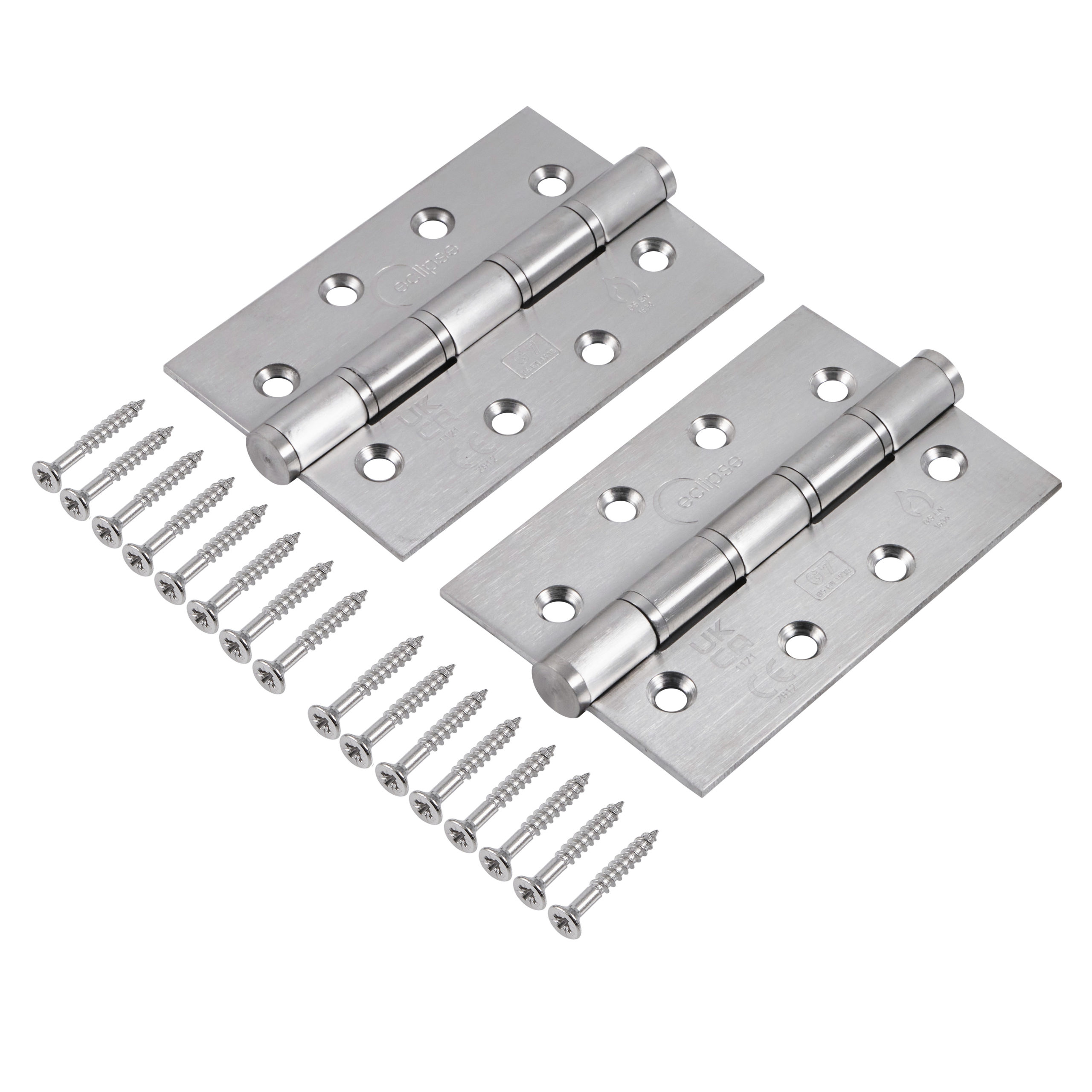

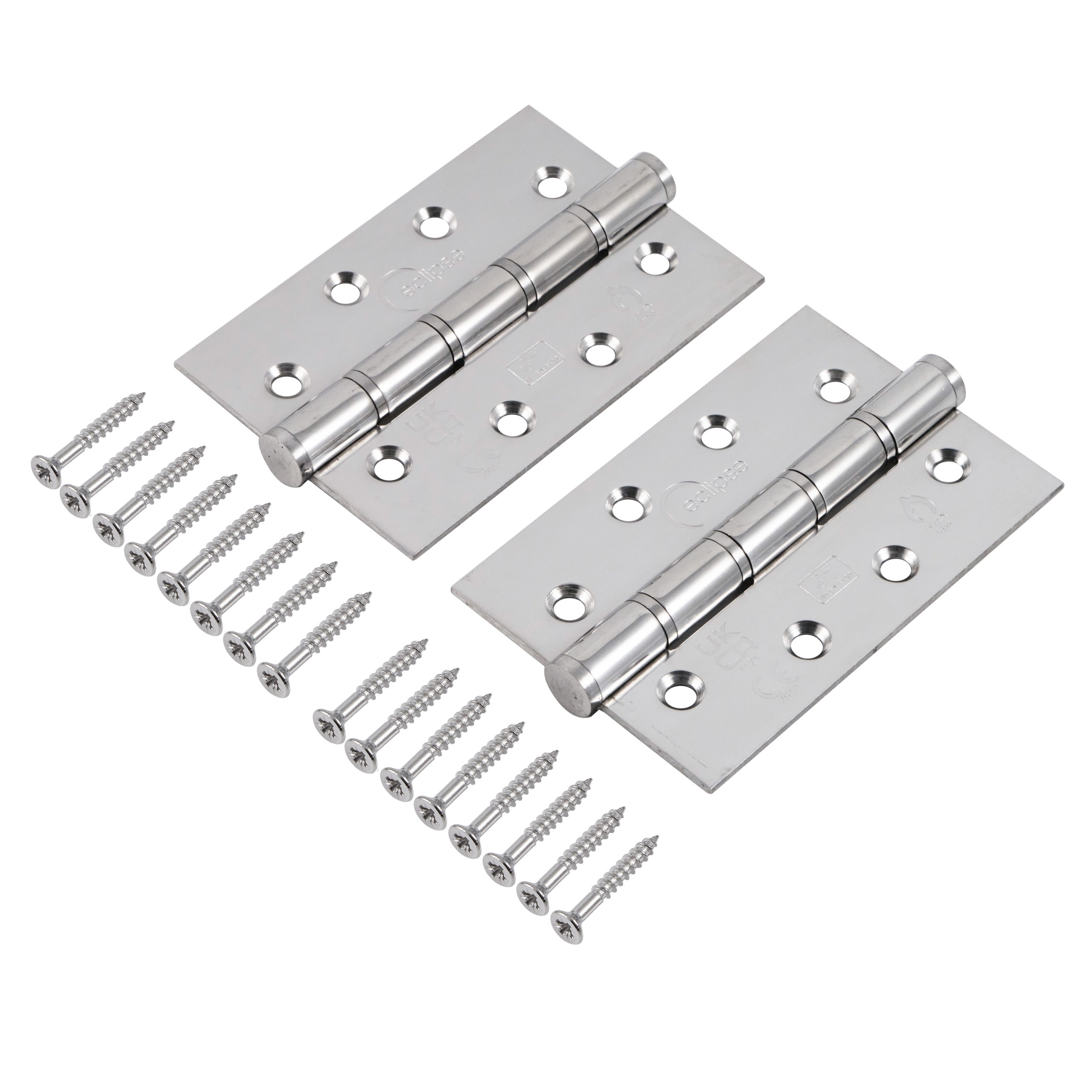

Supplied With 8×1.1/4″ Pozi Drive Threaded Screws
Supplied as a Pack of 2 Pieces
Specification
| Finish | EBP, PSS, SSS |
|---|---|
| Size | 102x67x2.5mm |
| Grade | Grade 7 (40 kg) |
| Pack Quantity | 2 pack |
| Base Material | SUS 201 Stainless Steel |
